Engineered for Performance. Controlled with Intelligence.
iControls® has built commercial door operators in Canada for over a decade. The PULSE range covers everything from balanced doors to high‑speed, heavy‑duty springless ones.
- Built for
- Warehousing, loading docks, manufacturing, cold storage, agriculture, parking garages, car washes and automotive centres.
- Door types
- Sectional, rolling steel and grilles, sliding, bi-fold, fabric and rubber.
90V or 180V
Direct-Drive DC Motors
Quiet horsepower-rated motors from 3/8 to 3 HP, with adjustable soft start/stop on every series.
Opening up to 24 in/s
Advanced Speed Control
On balanced doors, with programmable open/close speeds. Springless doors run faster.
Built-in 24V
Battery Backup
Keeps doors operating during a power outage. Not available on the PULSE 400 or 600.
Meet the PULSE Series
A complete range of direct-drive DC commercial operators, each built for specific door types and duty cycles.
PULSE 100 Series
The dock door operator. For balanced sectional and rolling steel doors up to 395 lb. Pre-wired for the fastest installation — just mount, plug and go.
PULSE 200 Series
For balanced sectional and rolling steel doors up to 395 lb. Adds a floor-level LCD, a stronger 24V battery backup, and door lock activation for 12V locking systems.
PULSE 300 Series
For larger high-cycle balanced sectional, rolling steel and sliding doors. The flagship operator: 90V DC motor with unlimited continuous duty and door type selection.

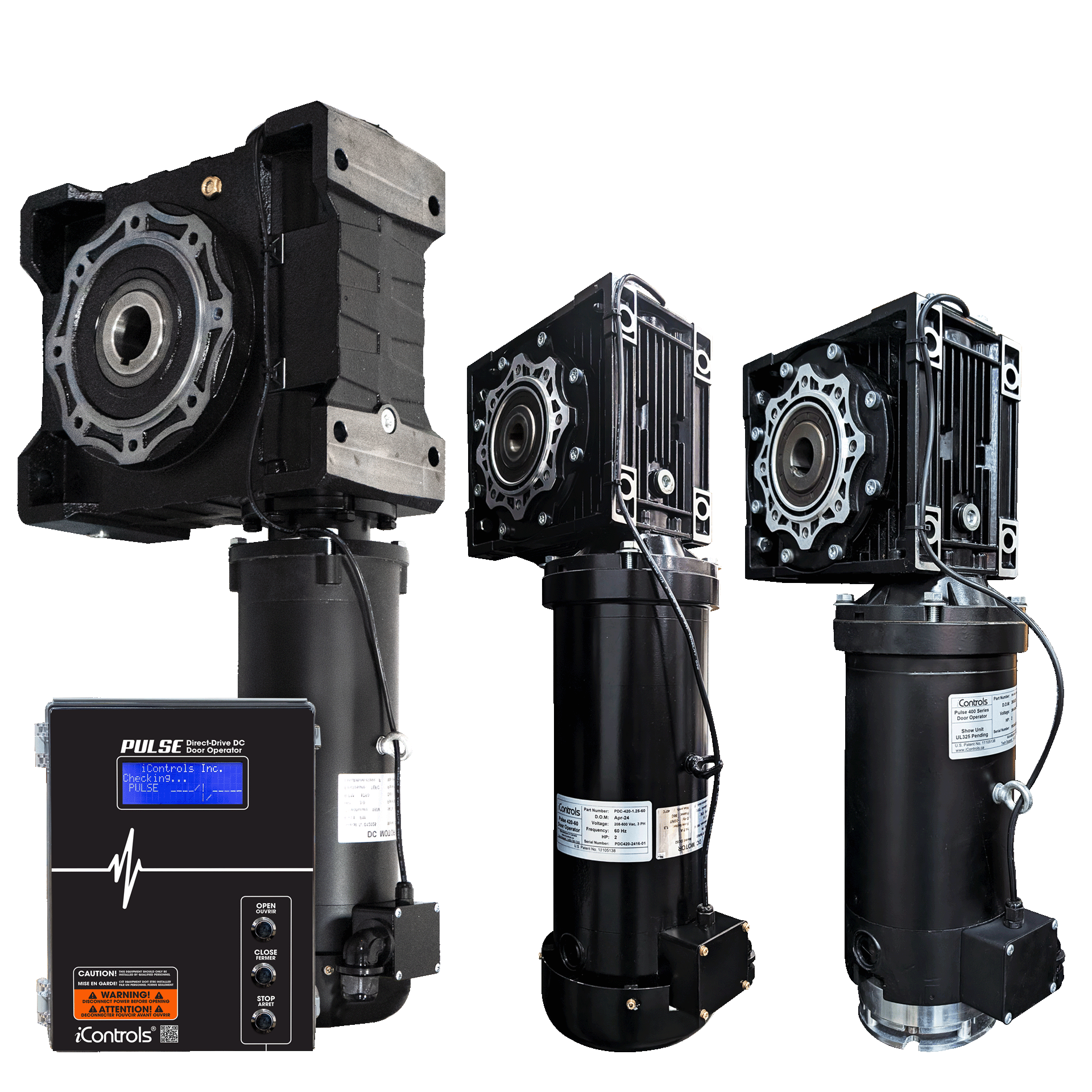

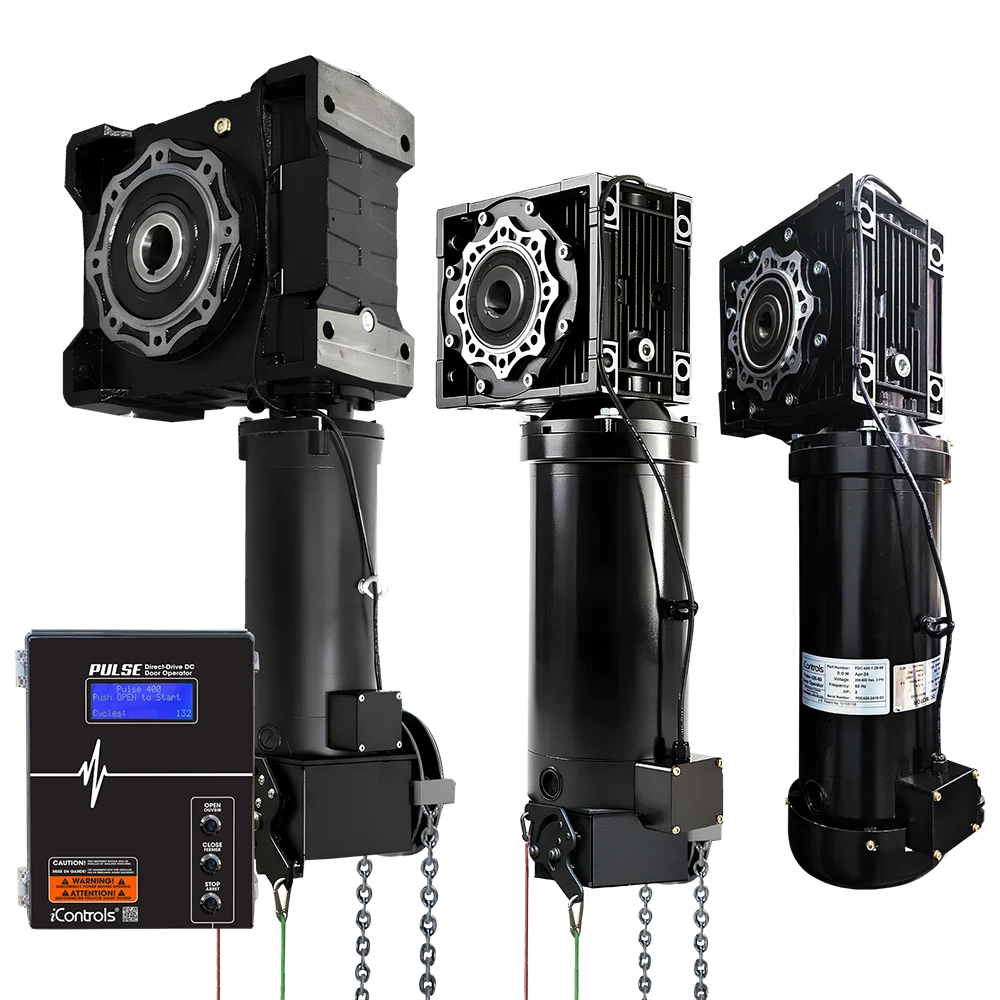

PULSE 400 Series
For the largest sectional and rolling steel balanced doors. Picks up where the PULSE 300 leaves off: 180V DC motor, universal 208‑600Vac input, optional electromechanical motor brake.

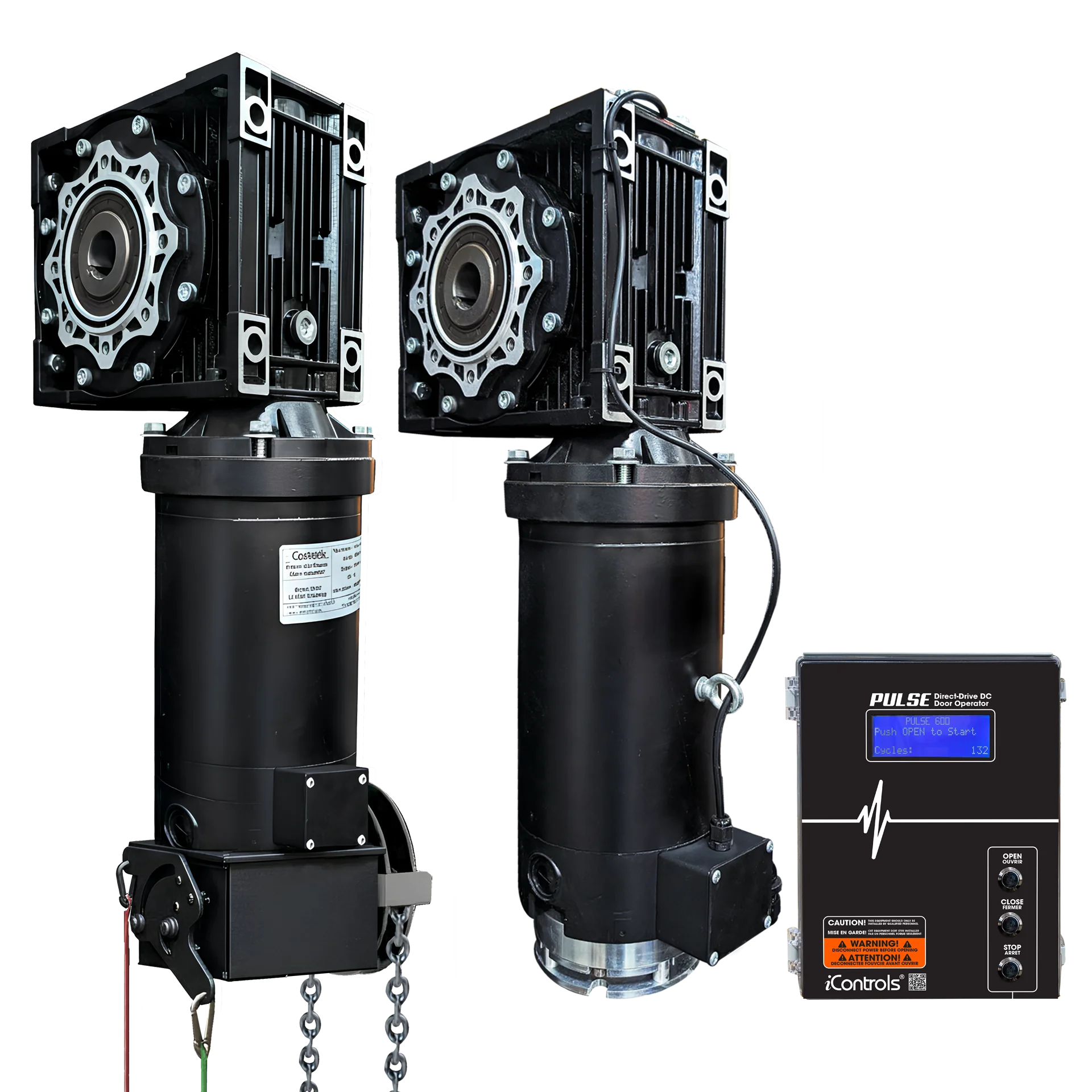

PULSE 600 Series
For springless doors that run all day — high‑speed fabric, heavy‑duty rubber, sectional, bi‑fold and rolling steel. 180V DC motor, universal 208‑600Vac input, included electromechanical motor brake.
Check Your PULSE
Compare features across all series to find the right operator for your application.
Information in metric system available on request.
Please contact sales for details.
How Heavy is Your Door?
Our commercial door operators come in various motor and gearbox sizes and ratios, matched to the weight of your door.
| PULSE Series | Motor (HP) | Gearbox Size | Gearbox Ratio | Shaft Size (in.) | Max Door Weight (lb.) | |
|---|---|---|---|---|---|---|
| PULSE 100 | Up to 1/2 | 50 | Up to 50:1 | 1 | Up to 3951 | Learn more |
| PULSE 200 | Up to 1/2 | 50 | Up to 50:1 | 1 | Up to 3951 | Learn more |
| PULSE 300 | Up to 1 | Up to 75 | Up to 50:1 | Up to 1.25 | Up to 15952 | Learn more |
| PULSE 400 | Up to 3 | Up to 130 | Up to 100:1 | Up to 2 | Up to 45253 | Learn more |
| PULSE 600 | Up to 3 | Up to 130 | Up to 40:1 | Up to 1.5 | Up to 10294 | Learn more |
Notes:
- 1 Based on counterbalanced standard lift sectional door drum capacities.
- 2 Based on counterbalanced vertical lift sectional door drum capacities.
- 3 Balanced door, size 130 gearbox at 40:1 with a 12" diameter custom drum. The operator handles only the unbalanced load (roughly 15% of door weight).
- 4 Springless door, size 130 gearbox at 40:1 with an 8" diameter drum. The operator lifts the full door weight, so this is not directly comparable to balanced doors.
Operator lift capacity generally exceeds drum capacity.PULSE 300, 400, 500 and 600 Series are rated for unlimited continuous duty cycle, with no cool-down periods required.
PULSE 100 and 200 Series are rated for up to 120 cycles per hour.
Find the Right Commercial Door Operator
Unsure which of our PULSE door operators is right for you?
We will help you find the right model for your commercial application in three simple steps.
Remote Controls & Accessories
Upgrade your setup with accessories designed to boost safety, efficiency, and convenience.

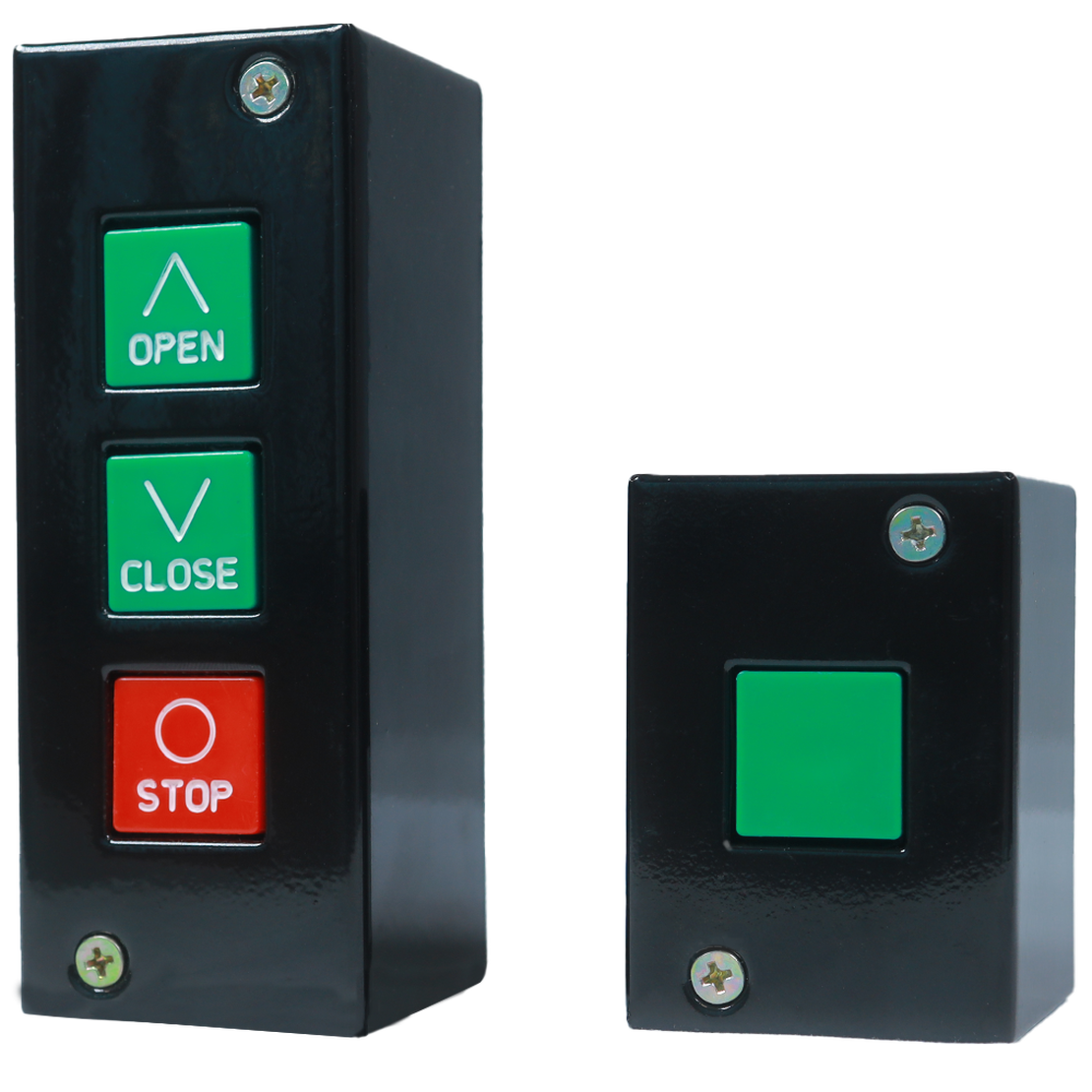

3-Button Station
PBS-3

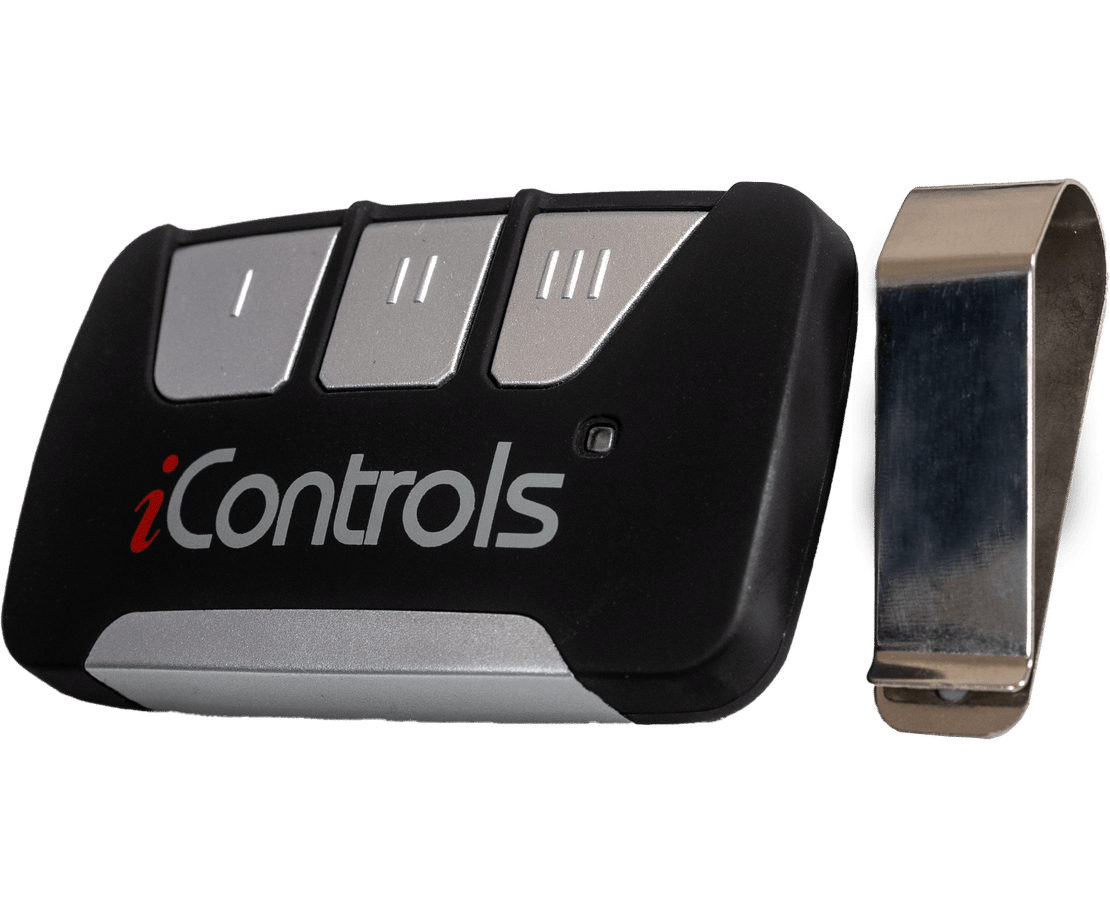

3-Button Remote Transmitter
TXTA-200
Universal Wireless Keypad
TXTA-KYPD

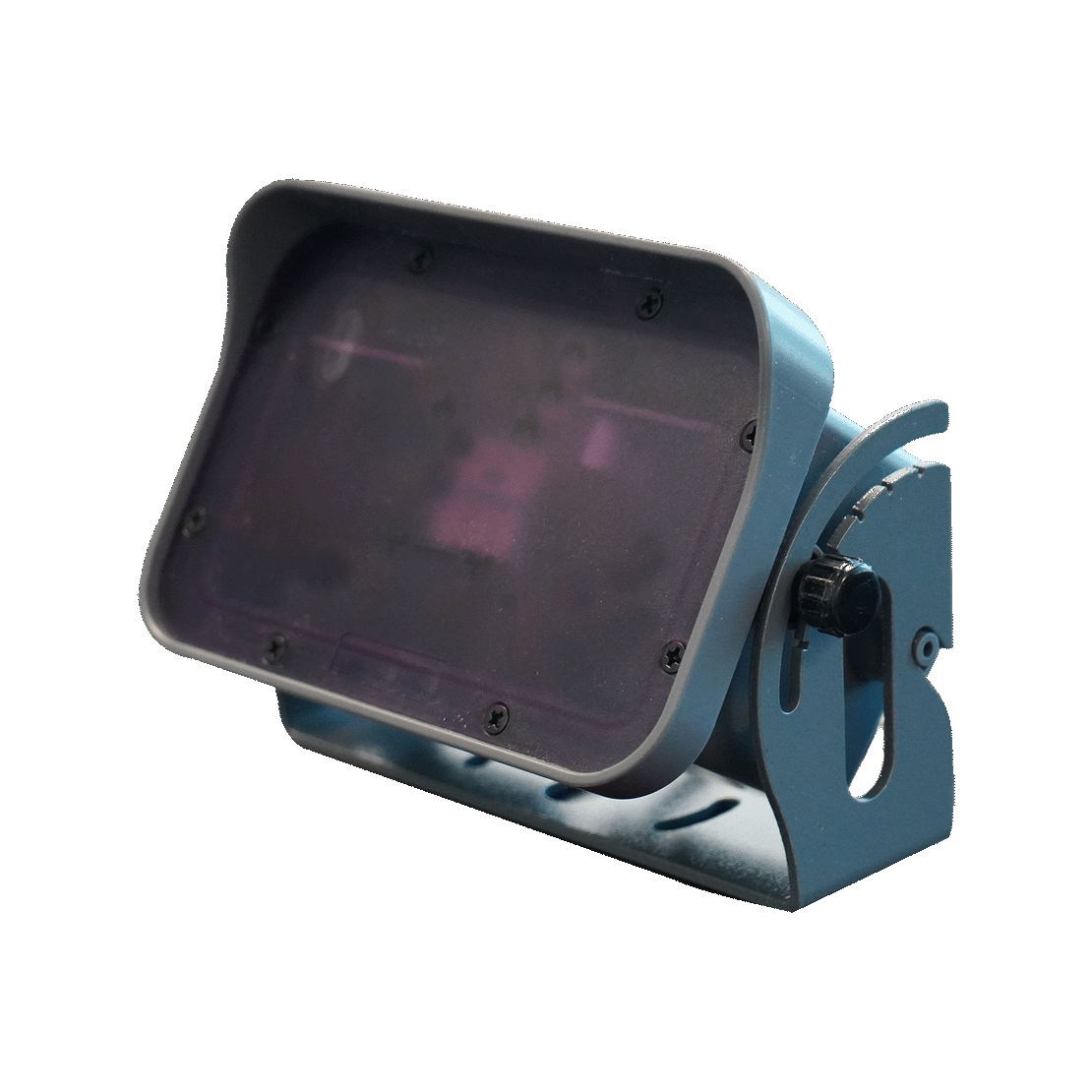

Motion Sensor
SA-PDCRADAR-01
Vitector NEMA 4X Optoeye
SA-OPTOEYE-RT

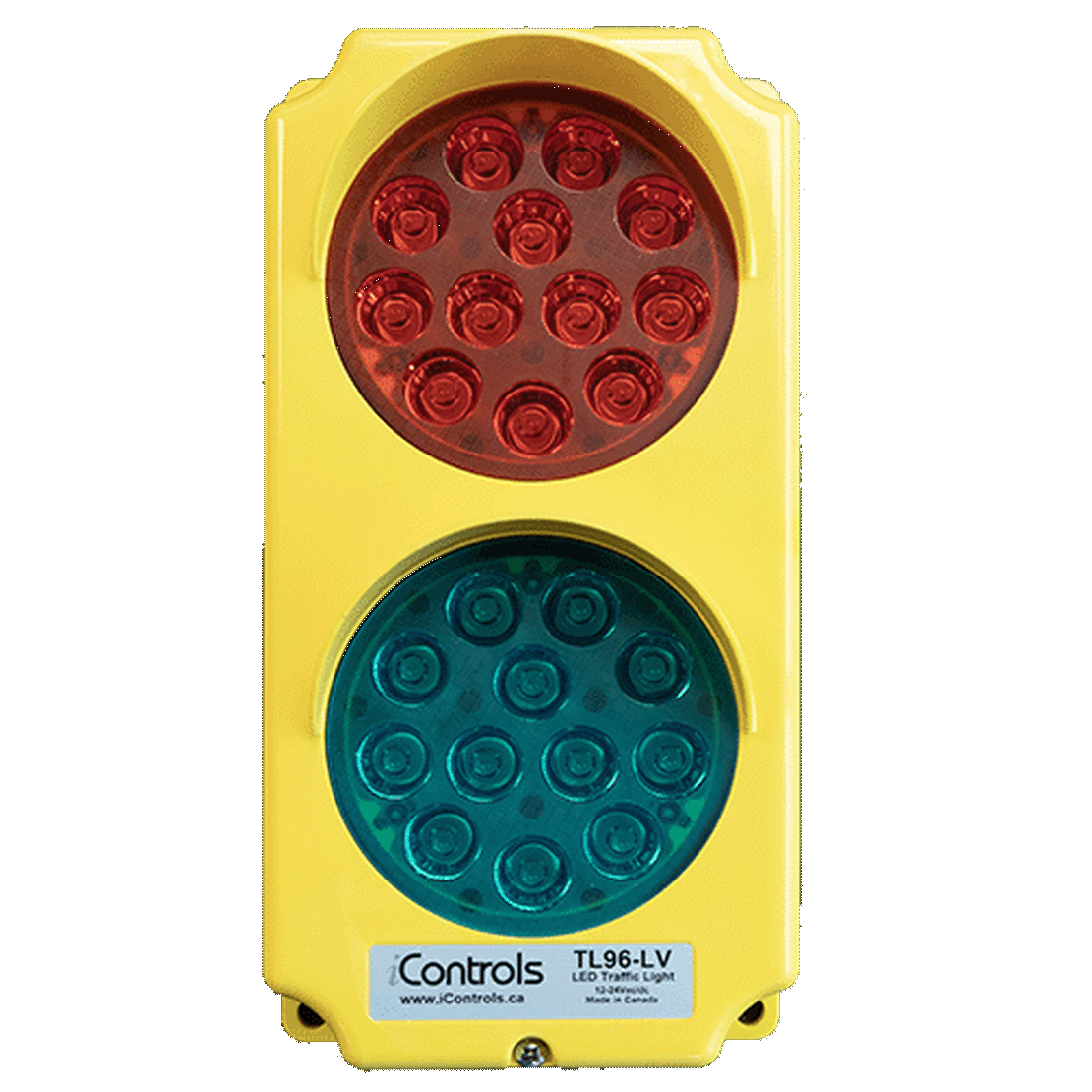

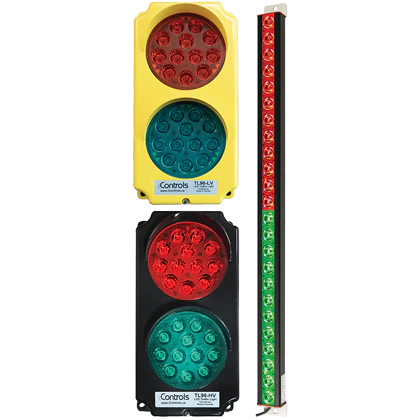

Red/Green Traffic Light
TL96-LV-YL
