Perfect for Heavy-Duty Springless Applications

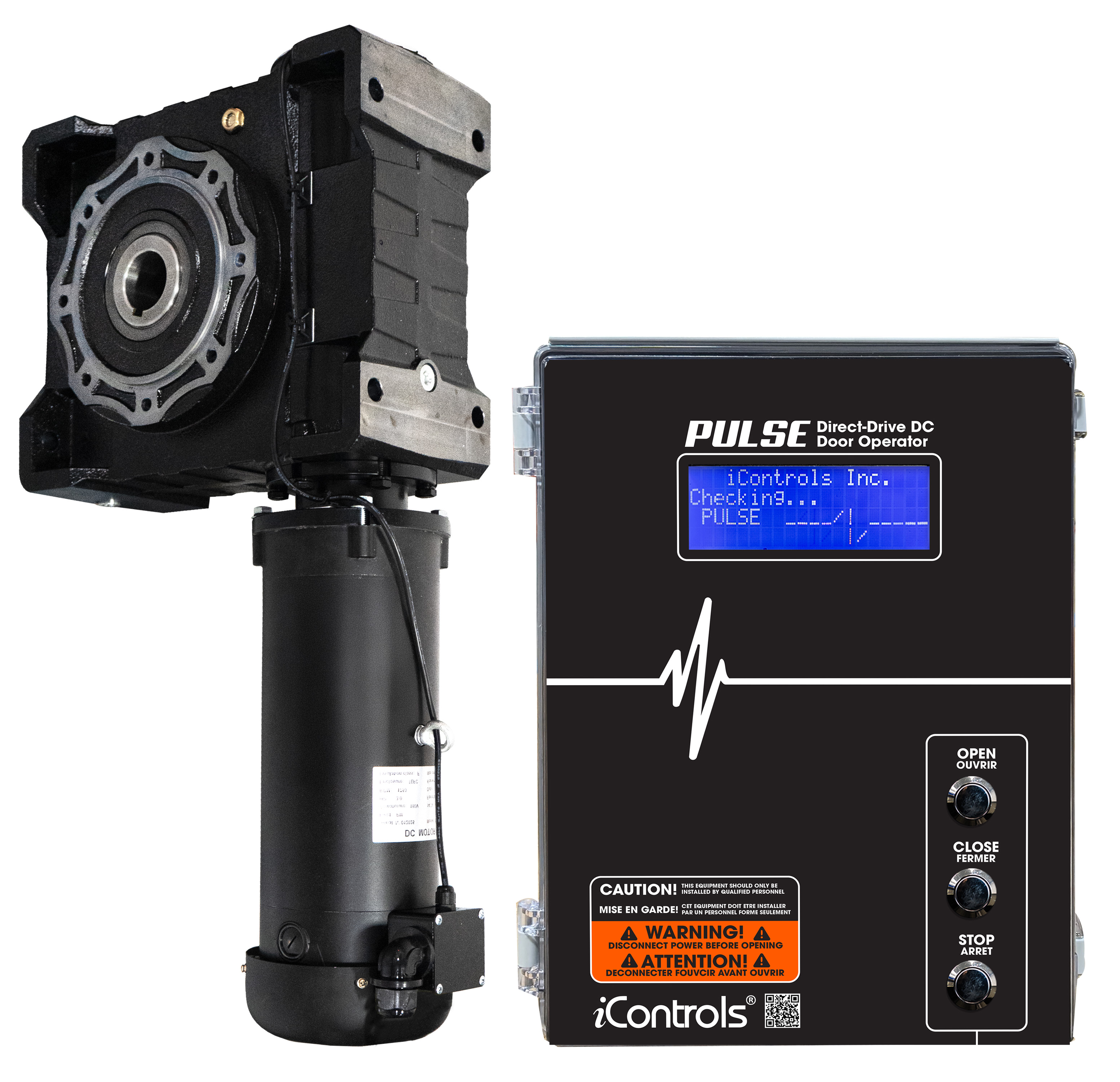

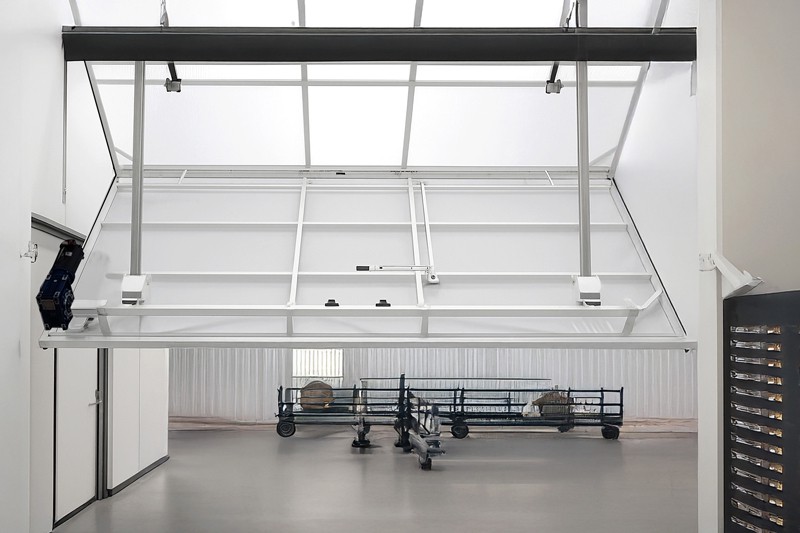

The PULSE 400HD is designed to work seamlessly with large, heavy-duty springless applications such as sectional, rolling steel or folding doors.

Perfect for Heavy-Duty Springless Applications

The PULSE 400HD is designed to work seamlessly with large, heavy-duty springless applications such as sectional, rolling steel or folding doors.

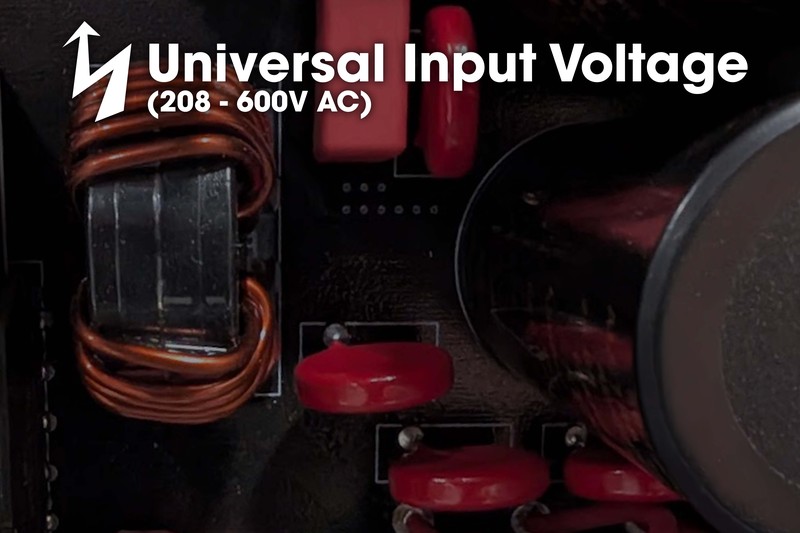

Works Globally, Right Out of the Box

The PULSE 400HD is our most versatile model yet. It’s designed to accept universal input voltage from 208V to 600V AC, 1Ph or 3Ph right out of the box for global compatibility. There’s no need for a step-down transformer or any additional configuration to achieve the required voltage.

Works Globally, Right Out of the Box

The PULSE 400HD is our most versatile model yet. It’s designed to accept universal input voltage from 208V to 600V AC, 1Ph or 3Ph right out of the box for global compatibility. There’s no need for a step-down transformer or any additional configuration to achieve the required voltage.

Programmable Advanced Speed Control

With precise RPM-based programming, users can set gearbox output speeds to match their application needs. The system maintains consistent performance regardless of input power, ensuring reliable and stable operation. The operator maintains consistent output, even in areas with fluctuating voltage.

Programmable Advanced Speed Control

With precise RPM-based programming, users can set gearbox output speeds to match their application needs. The system maintains consistent performance regardless of input power, ensuring reliable and stable operation. The operator maintains consistent output, even in areas with fluctuating voltage.

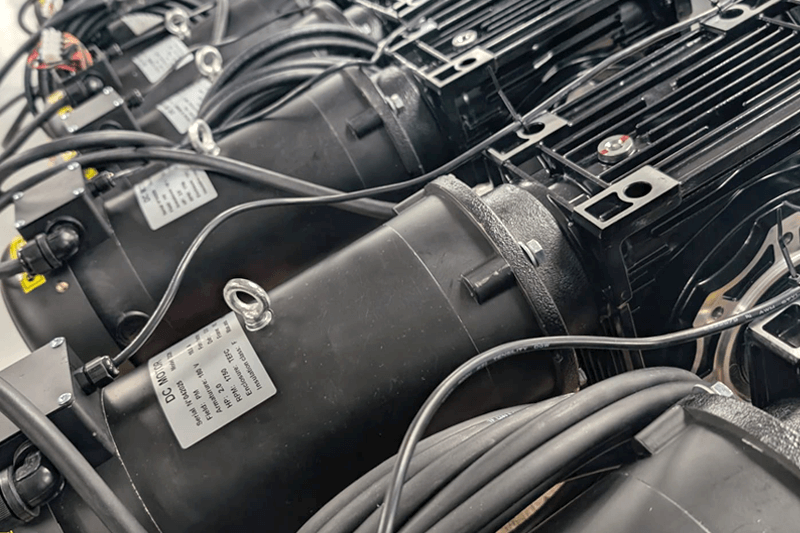

High Power DC Motors

Each unit is equipped with 180V DC motors rated at 1.5 HP, 2 HP, 2.5 HP, or 3 HP, paired with gearboxes in a variety of sizes and ratios.

High Power DC Motors

Each unit is equipped with 180V DC motors rated at 1.5 HP, 2 HP, 2.5 HP, or 3 HP, paired with gearboxes in a variety of sizes and ratios.

Adjustable Soft Start/Soft Stop

This feature offers smooth, controlled acceleration and deceleration of the door, and helps prolong the life of its mechanical parts. It also aids in the prevention of cable throw. The distance of both the acceleration and deceleration can be programmed to match the door requirements as needed.

Adjustable Soft Start/Soft Stop

This feature offers smooth, controlled acceleration and deceleration of the door, and helps prolong the life of its mechanical parts. It also aids in the prevention of cable throw. The distance of both the acceleration and deceleration can be programmed to match the door requirements as needed.

Programmable Closing Timer

This feature allows to automatically close the door after a selectable delay of 1 to 99 seconds.

Programmable Closing Timer

This feature allows to automatically close the door after a selectable delay of 1 to 99 seconds.

Door Close Warning

When the closing timer is active, the red LED light flashes on your Stop & Go traffic light before the door closes. Programmable from 1 to 9 seconds, use this safety feature as an early warning for your workers. Best used with iControls^® TL Series LED Stop & Go traffic lights.

Door Close Warning

When the closing timer is active, the red LED light flashes on your Stop & Go traffic light before the door closes. Programmable from 1 to 9 seconds, use this safety feature as an early warning for your workers. Best used with iControls^® TL Series LED Stop & Go traffic lights.

Reliable & Precise Encoder

Mounted inside the gearbox, the encoder enables easy limit setup and flexible left or right-side mounting. It supports advanced door functions including soft start/stop, dual open limits, and motion monitoring. If the door stops mid-cycle, the encoder detects the issue and halts operation to prevent further damage.

Chain Hoist Option

A manual chain hoist option is available for emergency backup operation. Once engaged via a lever at floor level, all electrical operation is disabled for operator safety. Default factory installation of the chain hoist is on the right-hand side of the operator, but it can be converted to the left-hand side on request. The door can also be operated using the included socket crankshaft.

Weather-Protect Option

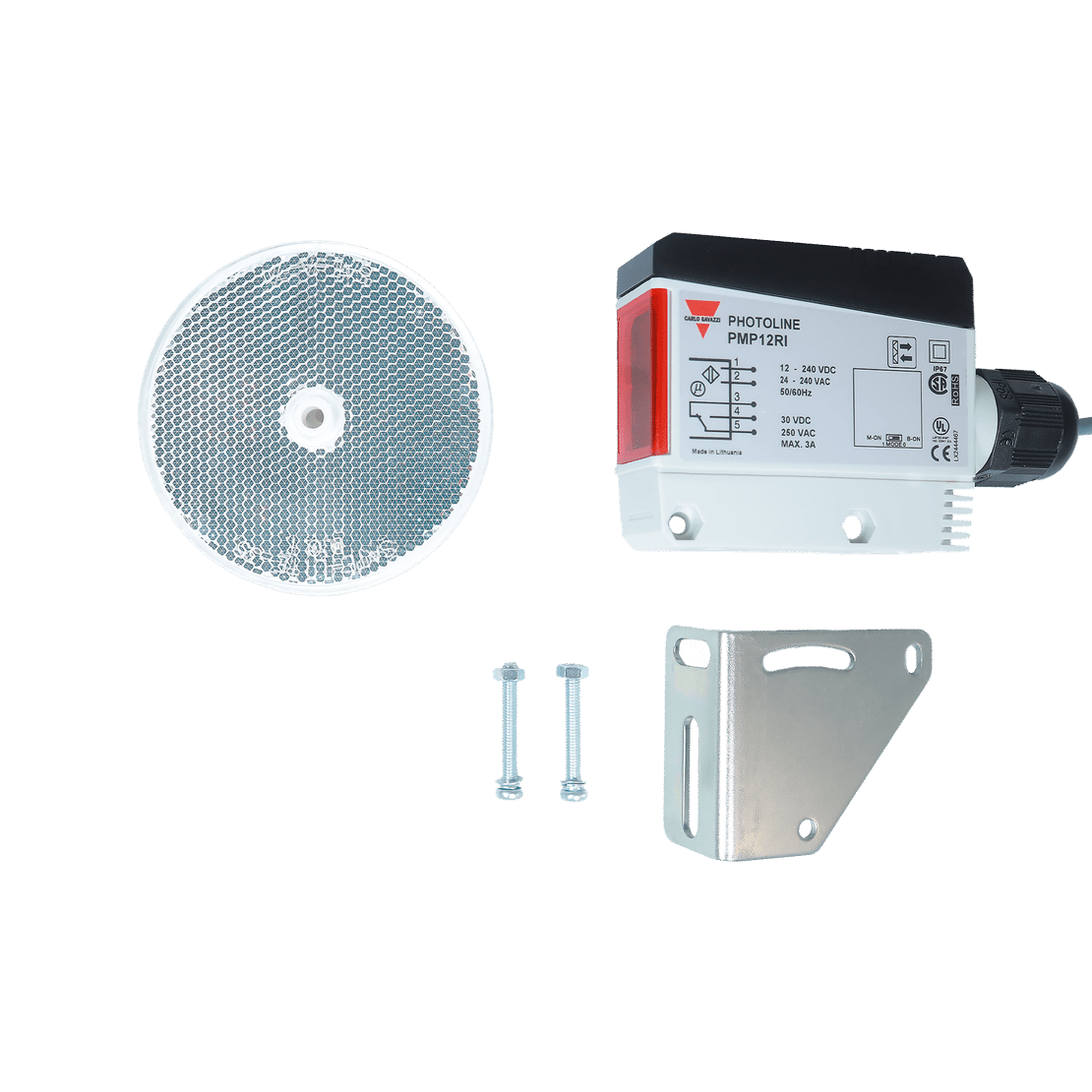

For weather-resistant applications, iControls® recommends an upgrade. Standard PULSE operator motors are rated IP44, and could be vulnerable to water ingress. Furthermore, reflective photo-eye sensors can be affected by condensation on the reflector, preventing reliable operation in such conditions. iControls® offers a cost-effective weather-resistant upgrade that seals ingress points on the motor junction box, and includes a NEMA 4X through-beam sensor in place of the reflective photo-eye.
To order the weather-protect option, add the suffix “-WP” to the door operator part number.
